A new compact VGA output board lets the Raspberry Pi Pico generate RGB plus sync signals via PIO, with simple wiring and onboard regulation.
Raspberry Pi Pico owners have long been able to do clever things with GPIO, but putting real pixels on a VGA monitor is a different kind of thrill.
This new build. featured by Misryoum. focuses on exactly that goal: a compact VGA output board designed to turn the Pi Pico into a reliable VGA source using the chip’s PIO (Programmable I/O) subsystem.. Instead of relying on heavyweight video hardware or complex external timing circuits. the board leans on the Pico’s ability to generate the precise waveforms VGA expects—RGB video lines plus the horizontal and vertical synchronization signals.
VGA is old enough to be simple, but unforgiving enough that timing has to be right.. In this design. the Pico’s PIO is used to clock out the red. green. and blue signals. along with HSYNC and VSYNC as needed.. That matters because VGA isn’t just “analog levels on pins.” It’s a structured dance: each scanline must start and end at the right time. and each frame has to align with the monitor’s expectations.

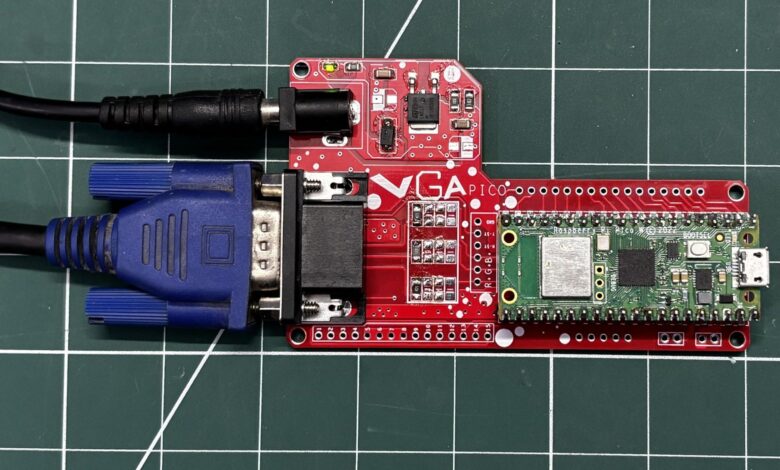

The hardware arrangement is also part of the appeal.. The Pico plugs into a custom PCB so the project stays neat instead of turning into a tangle of jumper wires.. Between the Pico and the standard DE-15 VGA connector. the supporting electronics are intentionally minimal—just a few resistors to help shape signal behavior.. For power. the board includes an LM317 regulator. giving the setup a straightforward path to stable voltage for the Pico and the surrounding circuitry.
There’s a second layer to the story, too: display compatibility.. Misryoum notes that the creator used a modified VGA library based on earlier work. aiming to make the output more readily accepted by both newer TFT displays and older CRTs.. That’s a practical upgrade because different displays can be picky about signal details, scan timing, and tolerance for variations.. A microcontroller-generated signal that looks “close enough” on one screen can be ignored or unstable on another.
On the software side. the demo stays accessible: Misryoum highlights basic “Hello. World” style programs to prove the pipeline works. then moves to something visually interesting—a recreation of Conway’s Game of Life.. That kind of example is more than a party trick.. It demonstrates that the VGA output isn’t just producing a test pattern; it can render dynamic content with the tight timing budget VGA requires.
If you’re thinking about building your own. this design offers a useful template: use PIO for timing-critical video signals. keep external analog glue minimal. and pay attention to the VGA library details that affect real-world sync behavior.. It’s also a reminder that video output projects succeed or fail mostly on the unglamorous engineering—signal levels. sync pulses. and repeatable timing.
From a broader digital trend perspective. projects like this reflect a bigger shift in maker electronics: microcontrollers are increasingly treated like serious multimedia platforms.. Once you can generate a standard display interface. you can iterate quickly on UI. visualization. and interactive graphics without needing a computer tether for every change.. For education and prototyping, that’s huge—suddenly the display becomes part of the feedback loop.
Looking ahead, Misryoum suggests the natural next questions are about higher resolution and modern connectors.. The same platform that supports VGA generation can also be explored for DVI or HDMI-style approaches. but those usually involve more complex encoding and often additional hardware or more advanced signal handling.. For now. though. a working VGA board is an ideal stepping stone: it’s widely understood. forgiving in cost. and immediately rewarding when your code becomes visible on a big screen.
