Rotatrix trackball – A new trackball-based controller, Rotatrix, rethinks how 3D CAD views are manipulated—turning the ball into an intuitive object control instead of a mouse replacement.
Working with 3D models can feel strangely stuck in a 2D mindset—especially when your view controls are based on a mouse.
That frustration is what led David Liu to rethink the classic “cursor on a plane” approach.. In his setup, controlling a 3D object with a trackball isn’t just a convenience upgrade.. He changed the control mapping so the motion of the ball behaves more like rotating and steering the object you see on screen. rather than “moving a viewpoint across a surface.” The result is a more direct. intuitive interaction: tilt and spin the ball. and the model responds in the same spirit.

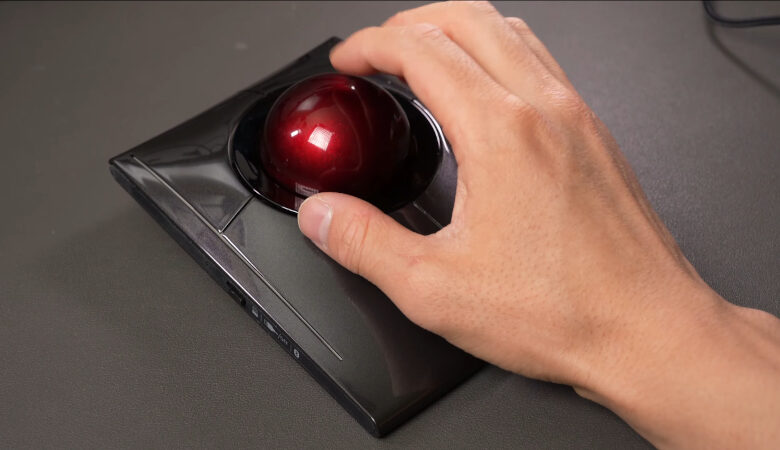

The hardware begins with something familiar—a Kensington trackball—then gets modified so its electronics and sensors can be used in the new way.. The core challenge wasn’t simply getting rotation to work. but tuning the “feel.” In CAD. tiny differences in how acceleration. sensitivity. and axis response behave can make the difference between precision work and repeated micro-corrections that slow you down.. That’s why Liu’s development process involved plenty of iteration: refining how the controller translates physical movement into stable 3D rotation.
The payoff is a peripheral that targets a specific bottleneck in many CAD workflows: managing both view orientation and everyday interaction at the same time.. Traditional approaches usually force one hand into mouse movement while the other runs keyboard shortcuts. or they demand a dedicated 3D joystick that can take time to get comfortable with.. By turning the trackball into an object-in-hand style controller. Rotatrix aims to do the job of both mouse-driven navigation and 3D joystick-style rotation—while leaving the other hand freer for shortcuts.
This kind of redesign matters because 3D work is inherently spatial.. When the input device doesn’t match that mental model. you end up “fighting the interface” instead of focusing on the model.. Even experienced users develop compensations—adjusting camera angles in their heads. correcting overshoot. or using slower. safer moves to avoid losing orientation.. A control scheme that makes the object feel like it’s being rotated directly can reduce that cognitive load. especially during tasks like assembly alignment. design iteration. or debugging a tricky surface behavior.
There’s also a broader trend lurking underneath the Rotatrix concept.. Interfaces are slowly moving beyond the idea that every task has to fit the mouse paradigm.. We’ve seen more natural input experiments across AR and robotics. and in creative software where gestures and spatial controls can outperform cursor-based manipulation.. Rotatrix sits in that same direction. but with a practical target: designers and engineers who need speed and accuracy. not novelty.
Of course. replacing a workflow isn’t just about “cooler control.” Users will care about consistency across different CAD operations—how rotations behave while zooming. whether navigation feels predictable after long sessions. and how easily muscle memory transfers from the mouse.. The Rotatrix pitch is compelling precisely because it’s not trying to make you learn a brand-new routine from scratch.. It keeps the familiarity of a trackball, then swaps the mapping logic so the motion corresponds to object control.
If Liu’s product gains traction. it could nudge a quiet shift in how people think about hardware around CAD: not as generic pointers. but as devices that understand the geometry of the work.. That. in turn. may inspire other makers to explore similar “mapping-first” designs—treating sensors and control algorithms as the real product. and treating the physical form factor as the ergonomic delivery system.
For now, Rotatrix is already a reminder that better tools often don’t require flashy technology. Sometimes the smartest upgrade is a change in how inputs are interpreted—so your hands aren’t translating between 2D control metaphors and 3D intentions.
