A lesser-known ultrasonic levitation method uses a thin air cushion under a transducer, enabling a two-transducer “air hockey” style setup that avoids dead zones.
A different ultrasonic levitation trick

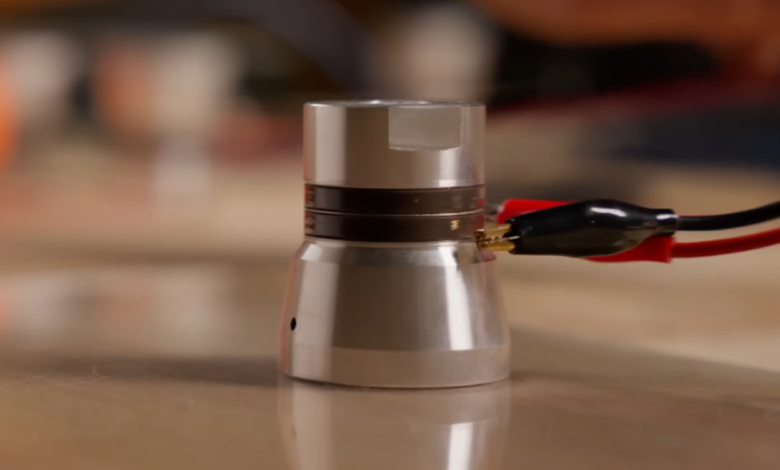

It starts with an unexpected observation: while working on torpedo guidance systems. Bob Collins noticed that a glass lens wouldn’t sit still on an ultrasonic transducer.. Instead of staying put, it slid off.. After more trials, Collins found a repeatable behavior—an ultrasonic transducer can levitate above any sufficiently flat and smooth surface.
The thin air layer mechanism
The key detail is that the escape path for air isn’t perfectly symmetric.. During the downstroke, the gap narrows, making it harder for air to leave.. During the upstroke, the opening is effectively wider, so air can return more easily.. That imbalance means the inflow and outflow don’t match at every moment.. At a certain hover distance. the forces induced by this air “breathing” settle into balance. and the transducer effectively floats on its own cushion of air.
For everyday readers, the takeaway is simple: you can get lift without magnets, without contact, and without needing the object to be shaped like a wave “target.” The surface condition matters, though—flatness and smoothness become part of the design.
Why a single transducer can fail
Where standing waves form, there are stable regions and unstable regions—often described as nodes and dead spots.. In a levitation setup, those dead spots aren’t just annoying; they can trap pucks along node lines.. The puck doesn’t “drift like it should. ” because the wave field is creating preferred paths whether you want them or not.
The two-transducer fix
This is also where the engineering becomes more than a party trick. The placement and phase relationship of the transducers act like a control knob for the wave field. Even without a complex feedback system, the spatial behavior improves: the pucks can glide rather than lock into fixed lines.
There’s a human element here too. The setup is small enough that the “players” are toothpick-sized—tiny, but enough to see the effect immediately. Watching something hover and move on command makes ultrasonic levitation feel less like lab physics and more like a controllable tool.
What it means for the next wave of projects
It also suggests a broader trend in hands-on engineering: inventors are increasingly combining known wave principles with “deployment-friendly” methods.. We’ve already seen ultrasonic levitation across everything from electronics kits to more ambitious display and imaging concepts.. The air-hockey approach sits in the middle—visually engaging. mechanically clever. and grounded in physics you can test without turning it into a full-scale research program.
The practical question: how scalable is it?. For future builds, the natural question is scalability.. How stable is the hover distance as conditions change—dust on the surface, slight warping, different materials, or temperature shifts?. The mechanism depends on a controlled, narrow air gap, and that sensitivity is both the strength and the limitation.. Scaling up may require careful surface quality and transducer positioning.
Still. even a small “arena” demonstrates something valuable: ultrasonic systems can be designed not just to levitate objects in place. but to guide motion across an area.. If that control can be made robust beyond smooth floors and tiny pucks. this style of levitation could move from clever demonstrations toward practical. contactless manipulation—whether in prototypes. educational builds. or niche industrial tasks.
