A quiet reality sits inside many of the electronics we rely on: the “good” parts of a chip are often different from the “perfect” blueprint.
That difference is increasingly being turned into an advantage through a practice known as “binning. ” where semiconductor manufacturers sort chips based on what they can reliably do.. Rather than discarding parts that don’t meet the highest-end specifications. companies grade them for lower-cost or lower-power products—an approach that can reduce waste while keeping consumers supplied with affordable devices.
Misryoum reports that Apple may be ramping up its use of such binned chips for a newer, lower-cost laptop line.. The device is expected to use an A18 Pro chip configuration with fewer GPU cores than versions used in higher-end iPhone hardware.. The implication is that chips previously labeled as imperfect—potentially due to a single core issue—could still be valuable once they’re repurposed into a product category with fewer expectations.
Why “defective” chips don’t always mean unusable chips

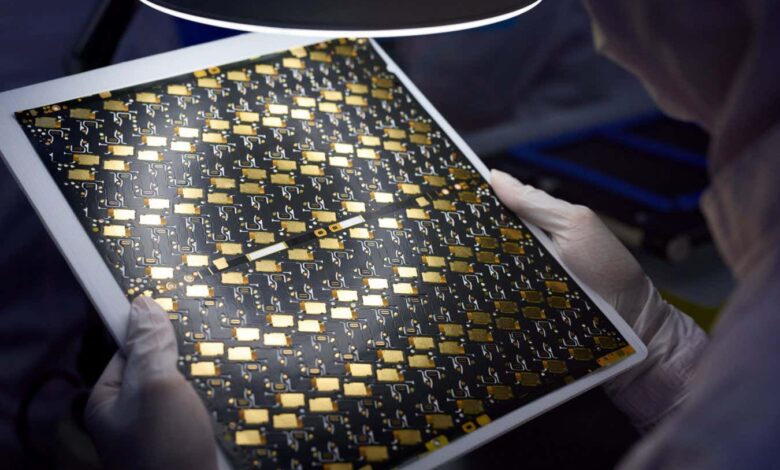

The confusion comes from a simple consumer assumption: that every chip inside a phone or laptop is identical. or at least interchangeable.. In reality, Misryoum points to the manufacturing process where chips are created in vast batches on silicon wafers.. Each wafer holds trillions of individual transistors. and producing them requires thousands of steps that deposit and pattern ultra-thin layers—often only a few nanometres thick.
At each step, there’s a small chance of something going off-target.. Some chips may end up with flaws small enough to ignore. while others carry “killer defects” that stop them from meeting any practical standard.. The key is not whether defects exist, but how many there are—and whether they land in critical places.
The yield problem: sorting chips by performance potential
Semiconductor yield—the fraction of chips that can meet specifications—is one of the defining constraints of chipmaking.. Misryoum explains that yield can be very high for more mature. widely understood designs. but it often drops as chips become more complex or as manufacturers switch to newer and rarer materials.
When yield falls, binning becomes more than a technical choice; it becomes an economic strategy.. If a wafer produces more chips with partial defects than expected. manufacturers can still sell them by adjusting the product tier.. For example. if a chip has an issue affecting one GPU core. the manufacturer might disable that core and sell the chip as a five-core version rather than a six-core flagship.
Sometimes the sorting is even more subtle.. A chip might be stable only at lower voltages, reduced clock speeds, or different thermal limits.. In those cases. the silicon isn’t “bad” so much as it’s being matched to a specification that fits its actual reliability.. That’s where binned computer chips become a bridge between manufacturing reality and product demand.
Software and design hide the imperfections
To the end user, this sorting is often invisible.. Misryoum highlights that chips are designed with redundancy and error-tolerant systems that can route work around damaged sections or recover data where appropriate.. In memory, error-correction techniques can prevent failures from turning into data loss.. In processors, broken cores or faulty pathways can be isolated so software continues to run without crashing.
This is a crucial point for anyone worried that “binned” means “unreliable.” The goal of binning is precisely the opposite: to ensure that even imperfect parts behave predictably within a defined envelope.. A chip that doesn’t qualify for the top tier isn’t thrown away; it’s reassigned to a tier where its limitations are managed.
The sustainability angle: less waste, lower cost, more supply
Binning has an environmental side that’s easy to miss when thinking only about specs.. Manufacturing semiconductor-grade silicon and producing each wafer involves expensive equipment, energy, and materials.. When devices are sold using only the highest-performing dies, any chip that falls short becomes scrap.
By contrast, grading and repurposing chips turns potential waste into usable inventory.. That matters not just for pricing, but also for how efficiently the industry turns raw production into actual devices.. Misryoum frames binning as a modern extension of a broader logic used in other supply chains: products are categorized so that imperfections don’t automatically mean disposal.
In practical terms, this can help companies maintain supply during periods when demand outstrips perfect manufacturing yield—especially in a world where smartphones, laptops, and data devices are constantly upgrading.
What it means for the next wave of devices
The deeper significance is that binned computer chips reflect a more mature semiconductor mindset: accept variability. measure it. and design products around what can be reliably produced.. As chip architectures grow more intricate and manufacturing constraints tighten. binning can become increasingly important for keeping costs down and avoiding unnecessary scrapping.
For consumers, the takeaway is both reassuring and empowering.. The technology in your phone or laptop isn’t necessarily “broken”—it’s often the result of careful engineering that makes imperfections behave like features.. And for the planet, those imperfections may simply be getting a second life instead of ending up in the trash.
Misryoum will keep tracking how chipmakers balance performance, reliability, and sustainability as the industry pushes toward even tighter tolerances and more advanced hardware.
