DIY TDR – A DIY approach replaces costly time-domain reflectometer hardware with a USB audio device to help locate wiring faults in cars.
A time-domain reflectometer sounds like specialized lab equipment, yet a DIY build is trying to bring the core idea to garage-level troubleshooting.
Misryoum reports that the approach uses the fundamentals of time-domain reflectometry. but swaps the typical high-speed pulse generator for something far cheaper: a USB audio interface.. Instead of firing an ultrashort electrical pulse down a wire. the setup transmits a low-frequency sine wave and then analyzes what comes back.

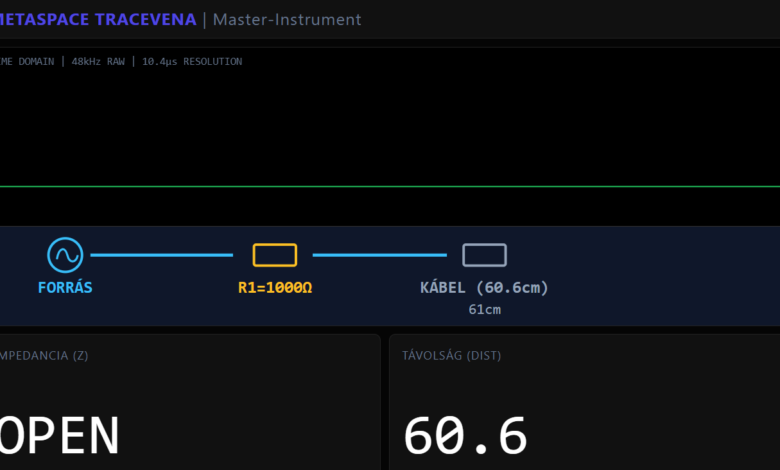

The method works by studying how the reflected signal returns and how its phase shifts over distance.. From that phase information. the software can estimate where the wire ends or where conductivity changes along the cable. offering a practical way to narrow down potential breaks in wiring harnesses.
This matters because automotive wiring faults are notoriously difficult to diagnose once the problem hides behind insulation and routing. A tool that can help pinpoint a likely location can turn hours of guesswork into targeted inspection.
That same context is where the DIY direction feels especially relevant: Misryoum notes the project is aimed at automotive troubleshooting. where a measurement that implies a short length from a known reference point can help indicate where a break may exist inside the harness.. The build also relies on supporting hardware for signal protection and tuning so the measurement setup can handle different cable lengths.
Still, the work isn’t framed as a finished product. Misryoum says a new prototype is being developed to improve performance, particularly for shorter cables where signal interpretation can be trickier.
In the bigger picture, the project reflects a wider DIY shift in electronics and testing: using signal processing to compensate for hardware cost. For tinkerers and independent mechanics, that can mean more diagnostics options without waiting for expensive lab tools to show up on the workbench.
Finally, Misryoum sees value in this kind of out-of-the-box engineering for a common problem. Whether it becomes a reliable bench tool or inspiration for other experiments, it shows how creative engineering can make advanced diagnostics feel within reach.
