rim-driven jet – Misryoum reports on a rim-driven, fan-on-a-rocket-nozzle concept that uses propane combustion and aggressive heat control—promising, but still facing engineering tradeoffs.
A rim-driven thruster flips a familiar propulsion idea: instead of spinning a propeller attached to a central motor. the blades ride on the inside of a fast-moving rim.. Misryoum coverage of a new build pushes that concept further—into a jet-like engine that uses miniature rocket nozzles and combustion.

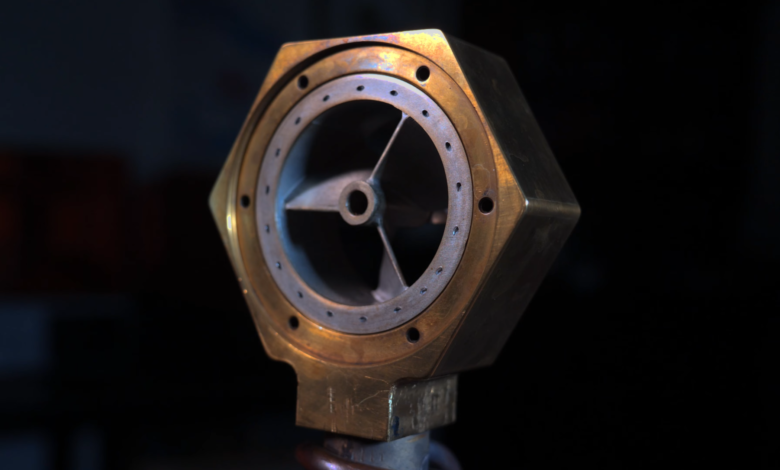

At the heart of the design is an unusual architecture.. The “fan” levitates on a thin layer of high-pressure gas between the rotor rim and the surrounding housing. aiming to reduce friction while keeping the airflow contained.. In the prototype. the fan was powered with compressed air first. and it proved the mechanism could spin and hold stability within the tight clearances the system demands.
The bigger leap came when the builder tried to replace the compressed-air driver with combustion.. The combustion chamber was assembled from brass fittings and fueled with propane mixed with compressed air—an approach that mimics rocket-style energy release rather than the electrical or mechanical power typical of small experimental thrusters.. The moving parts were CNC-milled from aluminium and brass for the housing and rotor components.. But once the combustion chamber entered the system. the project ran into a classic problem in high-heat rotating machinery: thermal expansion.
When heat builds up. metal grows—and in this engine. that growth was enough to make the fan jam against the housing.. Rounding down the edges didn’t fix the core mismatch; instead. one test ended with a melted hole in the fan.. That failure matters beyond the immediate setback.. Rim-driven systems rely on extremely controlled tolerances. so a design that works on cold compressed air can become unreliable the moment sustained temperature rise changes the geometry.
The response shows what separates a neat concept from something that can survive a test stand.. A new fan was machined and anodized specifically to improve heat resistance.. And because the exhaust stream needed to be cooled to a manageable temperature. the builder sprayed water into the combustion chamber. creating steam to draw down heat and temper the outflow.. It’s a practical. if power-hungry. engineering workaround—one that turns a propulsion problem into a thermodynamics problem and then uses phase change to get control.
Did it increase thrust compared with a baseline rocket nozzle?. The engine did work. but Misryoum can’t ignore the central uncertainty: the added fan may or may not provide a measurable thrust benefit over the underlying rocket-like driver.. That’s not a dismissal—it’s the normal reality of experimental propulsion.. Any attempt to “amplify” thrust has to be validated with careful measurements. because inefficiencies can hide in places that look minor on paper: leakage around the housing. losses in the gas film that levitates the rotor. friction under high thermal load. and changes to exhaust velocity profiles.
There’s also a systems-level question embedded in the design.. Rim-driven thrusters were previously discussed mostly in marine contexts, where propeller systems can be enclosed and optimized for continuous operation.. Translating the concept to an electric aircraft or a jet-like setup is attractive because it suggests a different way to distribute mechanical work—placing the rotating mass at the rim while keeping the drive principle external to the center.. But aircraft-grade propulsion demands long-term reliability, predictable performance, and tight weight/thermal margins.. Even for experimental builds, those constraints loom quickly.
What makes this project notable for the tech audience is the philosophy: it’s not just a new nozzle shape or a slightly different fan.. It’s an inversion of a propulsion layout—plus an attempt to harness levitation physics inside a combustion environment.. That blend is exactly where innovation tends to appear. especially as hobbyist-to-prototyper tooling (CNC machining. temperature-resistant surface treatments. and improved test iteration) becomes more accessible.
The next step is likely to be data-driven refinement.. Misryoum expects future versions to focus on thermal management without resorting to heavy water injection. or at least on quantifying the thrust tradeoffs that injection introduces.. If the levitation layer can be stabilized under hotter conditions and clearances can be maintained through smarter materials or compensating geometry. rim-driven propulsion could move from clever demo to a more repeatable experimental platform.
For now. the build is a reminder that propulsion is as much about tolerances and temperature as it is about thrust equations.. When it spins reliably under combustion. the idea becomes much more than a curiosity—and even if it doesn’t beat the baseline rocket engine. it could still teach valuable lessons for future thrust-amplifying designs.
