Mems photonics – A 1-mm photonic chip projects millions of light “spots,” aiming to make scaling quantum control practical and enabling faster scanning in imaging and 3D printing.
Quantum computers have a hardware problem that doesn’t get as much airtime as qubits themselves: controlling huge numbers of them at once.
The approach coming out of the MITRE Quantum Moonshot effort tackles that bottleneck by turning the laser-control challenge into a photonics-engineering problem—using a tiny MEMS-based imaging chip designed to steer light at massive scale.. Misryoum reports that the device is only about 1 square millimeter. yet it can project an image by scanning light across a 2D area with an unusually high number of addressable “spots. ” which the team calls scannable pixels.
A chip like this matters because the dream behind many quantum systems—especially those aiming for cybersecurity breakthroughs and large-scale simulations—is to scale from demonstrations to machines with millions of qubits.. The reality is that as qubit counts rise. sending the right control signals to the right qubits at the right time becomes brutally complex.. If each qubit needs its own laser, the system quickly becomes impractical.. The Misryoum takeaway: this work is trying to reduce that scale gap by making fewer optical sources behave like many targeted beams.

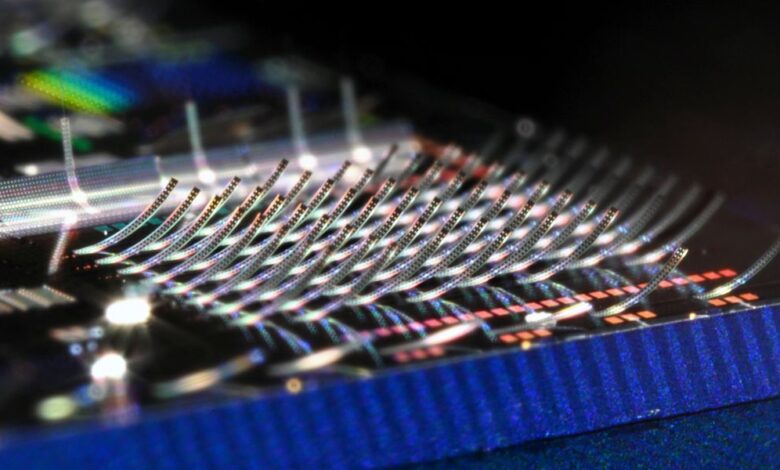

At the heart of the design is an array of micro-cantilevers: microscopic mechanical structures that bend out of the plane of the chip when voltage is applied.. Each cantilever acts like a miniature “ski jump” for light.. Misryoum notes that light is guided along a waveguide inside the chip, then exits near the tip of each cantilever.. To move the optical output where it needs to be. the cantilever’s motion changes the emission position over a two-dimensional scan field.
What makes the engineering particularly interesting is how the cantilevers are formed and how their motion is tuned.. Instead of starting with complex 3D machining. the fabrication process lays materials down flat and then releases the cantilevers by removing a layer beneath.. The released structure curves because of stress differences inside the stacked materials.. Thin layers of aluminum nitride—piezoelectric material—expand or contract under voltage, driving the movement.. Additional silicon dioxide bars help prevent curling across the cantilever’s width while improving the curvature along its length.
The performance headline is the scan density.. Misryoum reports that the chip can project 68.6 million individual scannable pixels every second.. In practical terms. that’s the kind of capability needed if you want to steer many independent optical targets without physically adding an equal number of lasers.. The team frames this as pushing the limits of what diffraction allows. and Misryoum notes the design’s advantages compared with prior beam-scanner concepts like MEMS micromirror arrays.
Turning a high-speed light scanner into usable images and video is a separate challenge from building the scanner itself.. Synchronizing and timing the cantilever motion with the light modulation is what determines whether a projected pattern becomes a stable image rather than visual noise.. Misryoum says the researchers overcame that hurdle by successfully projecting video content from a single cantilever. including clips associated with popular culture. and they also demonstrated a roughly 125-micrometer projection of the Mona Lisa.
For quantum computing, the idea is less about projecting art and more about control efficiency.. Misryoum explains the chip’s relevance to scaling qubit systems: if you can move beams across a 2D control plane and target many qubit locations with fewer optical resources. the control architecture becomes more scalable.. The program’s longer-term goal is a quantum computer that can reach millions of qubits. and that implies both optical and timing complexity must stay manageable.
There’s also a second application pathway that feels immediately plausible: faster scanning for 3D printing and advanced imaging.. Misryoum reports that today’s scanning approaches can take hours because they typically sweep a laser across an entire surface using a single beam.. A multi-beam approach—potentially employing thousands of beams at once—could compress scan times down to minutes.. That kind of speedup isn’t just about convenience; it can change how frequently designers iterate and how quickly production lines recover when something changes.
Misryoum also sees a broader trend in what this work represents: photonics is increasingly borrowing from the playbooks of semiconductor manufacturing and MEMS. aiming to make “optical systems” compact enough to fit inside tools rather than occupy separate lab benches.. If chip-driven beam steering keeps improving. future lab-on-a-chip devices could shift from imaging a sample to actively stimulating it—moving from viewing biology to manipulating it in real time.. Misryoum notes the researchers are even exploring alternative cantilever shapes. including curled geometries. which could enable scanning that wraps around a sample rather than only sweeping across a flat plane.
For readers. the most important implication is that scaling control in quantum systems might not require scaling hardware complexity in lockstep.. If a tiny photonics chip can replace large arrays of laser-and-optics overhead with smarter beam steering. it could help make quantum control architecture feel closer to engineering reality—and not just a theoretical limit.
