From breadboard sketches to real PCB design
The plugin—built for KiCAD—turns breadboarding into a workflow you can do inside the same environment where you design schematics and prepare PCB layouts.. For learners. that matters because the jump from beginner-friendly tools (like diagram-first approaches) to full CAD can feel like learning two programs at once.. Misryoum sees the broader trend clearly: teams and students want fewer handoffs between tools, not more.

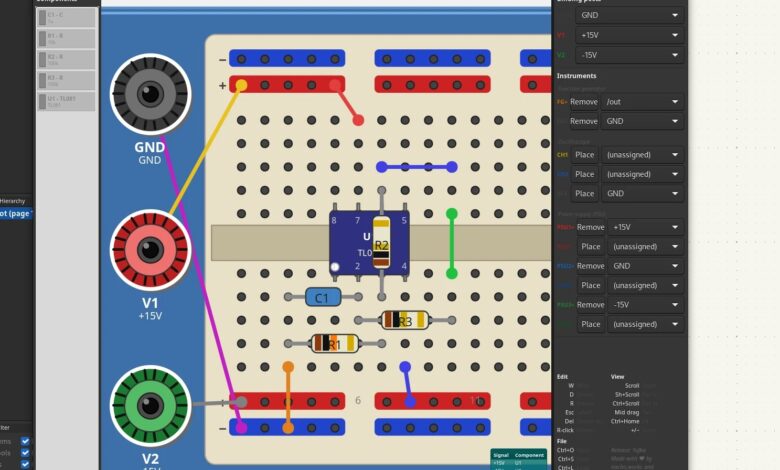

At its core. Misryoum’s take is straightforward: the plugin provides a virtual breadboard with configurable size and style. along with a set of components and placement tools.. You place parts directly onto the breadboard view using the interface, then draw the horizontal connections that make breadboards work.. From there. you assign power rails and create probe connections—so the virtual build isn’t just a picture. it’s a circuit layout that can be tested against the logic you intended.
ERC checks are the real time-saver
Breadboards are deceptively easy to wire incorrectly: rails get mixed. jumpers cross in the wrong place. and it’s common for the “it looked right while building it” problem to show up only after something fails to behave.. This plugin leans into KiCAD’s strengths by offering ERC (Electrical Rules Check) between the schematic and the breadboard.. In practical terms. the tool can flag mismatches—what’s connected in the schematic but not on the breadboard. or what doesn’t align as expected.
It can also run ERC at the schematic level before layout. which changes the experience from “wire first. debug later” to a more controlled sequence.. Misryoum notes that the ability to catch issues early tends to reduce the most expensive type of time waste in electronics: rework.. When you already know where a connection should go, troubleshooting becomes narrower and faster.
That verification loop also supports a goal many hobbyists and students share: confidence.. Once the virtual breadboard passes consistency checks. the path to moving the design to a physical breadboard (or to a veroboard for a more permanent setup) becomes less risky.. And because the workflow stays tied to schematic intent. you’re less likely to translate the circuit incorrectly during the transition.
What’s supported—and what you may need to work around
However. Misryoum would frame this as a typical early-stage tooling reality: libraries expand over time. and in the meantime. workarounds often exist at the schematic level.. In other words. you may be able to model or document certain behaviors differently in the schematic view. then use the breadboard mapping for connectivity and layout confidence.
One detail that’s especially practical is the ability to drop in and document power supplies. as well as function generator and oscilloscope probing points.. That’s the kind of feature that quietly improves transferability.. When a circuit can be built and measured with clear “where to probe” guidance. it’s easier for someone else to replicate your setup—or for you to repeat it months later without relying on memory.
Why this matters beyond one plugin
For years. many builders accepted that breadboards are ephemeral: diagrams may drift. wiring may change mid-build. and “correctness” often arrives late.. Misryoum sees this plugin as nudging users toward a more disciplined process without stripping away breadboards’ accessibility.. You still prototype quickly, but the work is anchored to an auditable electrical design rather than a best-guess wiring photo.
There’s also a learning impact.. Beginners benefit when their mental model of a circuit stays aligned with what the tool can verify.. When the system flags mistakes. the feedback isn’t a vague “it doesn’t work”—it’s a mismatch between intent and implementation.. Over time, that can make schematic reading and layout thinking reinforce each other instead of competing for attention.
If the workflow becomes common, you may see more projects documented as a full sequence: schematic design, breadboard mapping, verification checks, and then hardware iteration. That’s especially relevant for maker education, where instructors need repeatable steps and fewer surprises.
The future: fewer handoffs. tighter loops
For now. the practical takeaway is simple: if you breadboard circuits as a stepping stone toward a PCB. this plugin can reduce the risk that your real wiring quietly diverges from your schematic.. And in electronics. where one wrong connection can turn into an afternoon of head-scratching. that kind of guardrail is worth real attention.
