A resourceful maker builds a desktop wire EDM to cut aluminum and steel gears, adding sludge removal and real-time wire safety controls.
If you’ve ever wondered whether a garage build could take on industrial metalwork. a homemade wire EDM is a compelling answer.. Electrostatic discharge machining. or EDM. works differently from laser cutting or milling because it targets conductive materials by using controlled electrical discharges rather than physical force.. In this context. Misryoum takes a closer look at a new desktop wire EDM build designed for cutting hard. conductive parts.
The core challenge with wire EDM is not simply powering a discharge, but managing the wire itself.. This second iteration borrows a motion system from a low-cost desktop CNC router and adapts the spindle into a wire-handling setup.. A continuous brass wire is guided through the cutting zone while being kept under tension.. Two motors handle wire feed and tension regulation. while an Arduino-based control loop uses a tension sensor to maintain the right level of strain.
A key safety layer monitors what happens at the cut.. If the wire breaks, the system can halt the CNC controller to prevent further damage.. Meanwhile, a current monitor tracks sparking between the wire and the workpiece.. Misryoum notes that this kind of feedback is meant to anticipate when the wire is getting too close. slowing motion to reduce the risk of shorting and help keep the cut stable.
On the machining side, early results show why the design matters.. The maker’s first test involved cutting a multi-centimeter-thick block of aluminum. producing a clean separation in a couple of hours.. To improve performance on subsequent jobs. Misryoum reports that the build adds a pump and filter to clear sludge from the cutting area. a practical step for maintaining a usable cutting environment over longer runs.

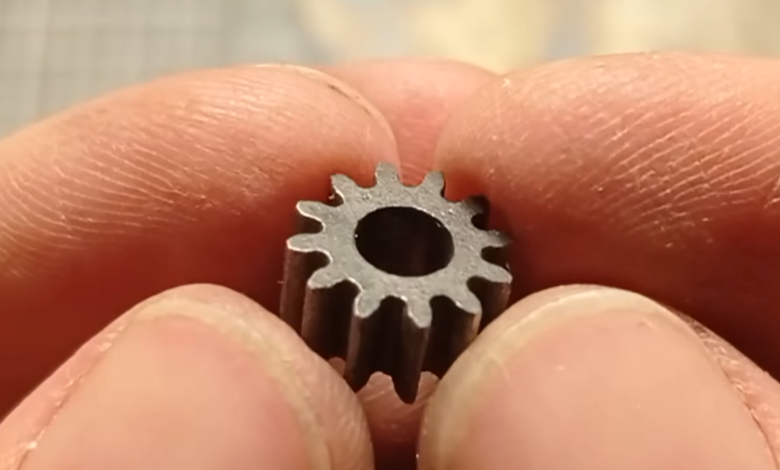

With the upgraded setup, the project progresses from aluminum to mechanical parts.. A cut aluminum gear was followed by a meshing steel gear. with the steel job taking significantly longer but still delivering results described as successful.. For makers. that progression highlights the tradeoff EDM often brings: slower throughput compared with some alternatives. but strong capability when conventional cutting struggles.
This also fits a broader trend Misryoum has been tracking across the maker ecosystem: people are increasingly turning accessible machines and off-the-shelf electronics into specialized fabrication tools.. The point isn’t to replace industrial EDM systems, but to make the underlying workflow and control logic more reachable.
From a security and reliability perspective. the project’s emphasis on monitoring and fail-safes is notable even outside the cybersecurity world.. Tools that can stop themselves when something goes wrong reduce waste and risk. and the same principle applies to how software should behave when machines interact with volatile physical processes.
*Misryoum* will keep watching this space where desktop CNC hardware, embedded control, and real-time sensing converge to unlock tougher materials for small-scale fabrication.
