Capacitance Proximity Sensing: A Raspberry Pi Pico Hack That Sees Through Wood
capacitance proximity – A Raspberry Pi Pico prototype turns built-in pin capacitance into an ultra-sensitive proximity sensor—detecting tiny coupling changes even through a thick wooden floor.

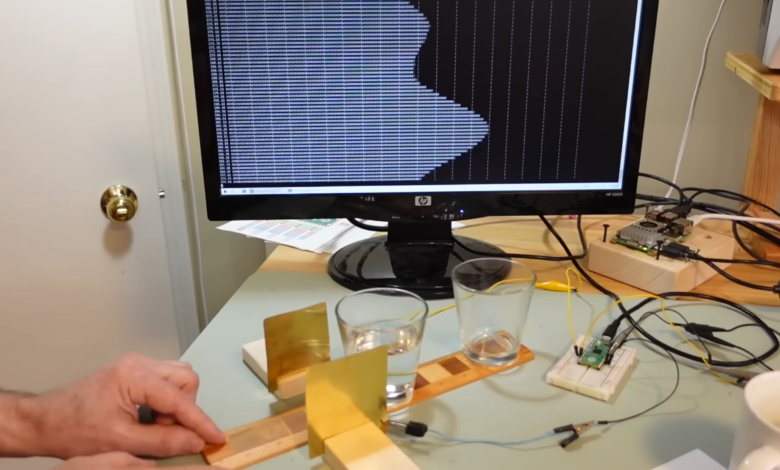

A proximity sensor built from something most projects ignore
The core idea is simple: two metal plates form a capacitor, and the overlap between them affects the capacitance. But the real trick is getting a measurement system sensitive enough to resolve small variations—potentially down to the picofarad scale—without expensive instrumentation.
The clever part: GPIO pins become a built-in capacitance meter
In practice. the Pico can drive a GPIO pin to a high level. then switch it to input mode and measure how quickly the voltage falls.. That timing maps to the RC constant, which includes the capacitance connected to the pin.. With a metal plate attached. the system can detect how strongly the plate’s capacitive coupling changes as a hand approaches.
What makes the approach feel “real” rather than theoretical is the demonstration: the sensor was sensitive enough to detect coupling changes from a hand through a thick wooden floor.. Wood isn’t conductive like metal. but capacitance doesn’t require a direct electrical path—the dielectric properties and distance can still shift the electric field distribution.. In other words, the sensing can work even when you can’t “touch” the electrical system.
Measuring capacitance between plates isn’t the whole story
However. the article’s warning sign matters: position measurements are tricky because capacitance changes with both X-axis movement and Z-axis movement.. If a target shifts sideways and closer at the same time, the sensor response becomes a combined effect.. For a DIY prototype. that’s fine for relative detection and crude positioning; for precision measurement. you’d need either calibration strategies or additional sensing geometry.
This is where the Raspberry Pi Pico approach stands out: it’s not trying to replace lab gear. It’s a practical entry point into capacitive sensing that encourages experimentation, tuning, and incremental improvement.
Why this matters beyond one hack
For makers, this changes what “possible” feels like.. If you can detect tiny coupling changes through everyday materials. you can prototype new interaction ideas without immediately needing specialized sensors.. Want gesture-like control behind a barrier?. Explore proximity without direct contact.. Need a knob-like feel from a simple setup?. Capacitive displacement can approximate it—especially if you accept relative tracking rather than lab-grade absolute accuracy.
From an engineering standpoint, the method also reframes how to design measurement circuits. By exploiting parasitic capacitance—usually considered a nuisance—you can turn an ordinary microcontroller into an analog-ish sensing instrument.
The security and reliability angle (often overlooked)
So if you build on this technique, treat calibration and shielding as part of the design, not an afterthought. Even a simple enclosure can reduce unintended coupling paths, and controlled testing helps you separate real motion from electrical noise.
Looking ahead, the most interesting direction is combining timing-based RC measurements with a smarter calibration workflow.. You could map sensor response curves in two or more dimensions to reduce the ambiguity between X and Z movement.. The Pico is well suited for that kind of iterative data collection—because it makes the measurement loop fast and programmable.
If nothing else, Misryoum’s tech community can take away a clear lesson: sometimes the best sensor isn’t a new component—it’s a better use of the hardware you already have.
