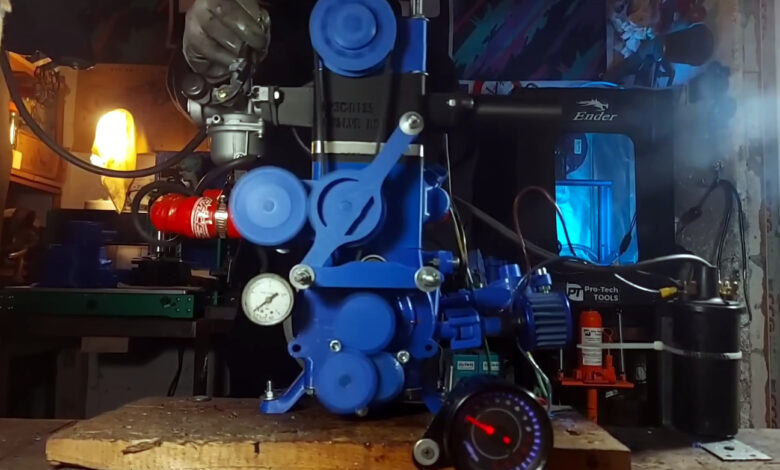

A 3D-Printed Engine That Actually Runs—What It Reveals About Plastic Manufacturing
3D-printed engine – A builder’s third-generation 3D-printed internal combustion engine shows how far FDM plastics can be pushed—and where metal parts still matter.
3D printing is often sold as a shortcut to prototypes, not as a way to build something that burns fuel. Yet one maker has kept iterating until a combustion engine built largely from FDM plastic could run.
The story starts with a familiar premise—desktop 3D printers are great for making shapes—but challenges a less obvious question: can common printing plastics survive the heat. friction. pressure. and chemical exposure inside an internal combustion engine?. The answer, at least in this case, is “sometimes,” but only after careful mechanical work and a mix of materials.
The engine’s design leans on printed components for systems that don’t live directly at the highest mechanical stress.. The builder includes 3D printed pumps to move coolant and oil. and then tackles a critical reliability problem: keeping coolant and lubricants from mixing.. A previous iteration apparently ran into issues there. so the head design evolves to prevent cross-contamination—an engineering reminder that “make it” is only half the job when fluids and tolerances are involved.
Still, it’s not a fully printed power unit.. Bearings, belts, and filters require add-on hardware, and the assembly depends on components that handle load-bearing and wear.. That split—plastic for structure and flow pathways. metal and precision parts for mechanical interfaces—matches how most DIY and low-volume engineering manages risk.. Even if a plastic part can endure a static load. an engine punishes everything that moves: sliding surfaces. rotational bearings. thermal cycles. and vibration.
What’s particularly striking is the material choices.. Most desktop FDM engines made by hobbyists lean on “engineering plastics. ” but here the majority appears to come from widely used ABS and ASA. with only some CF-Nylon parts.. That matters because it reframes the conversation.. The takeaway isn’t just that plastic can be strong enough in certain zones; it’s that the baseline materials many creators already have access to can be workable—if the design accounts for their weaknesses.
A key limiter with plastic in a combustion environment is heat and long-term degradation.. Plastics can soften under sustained temperatures, creep under stress, and degrade when exposed to fuels, oils, and additives.. In this build, the engine block uses a stainless steel sleeve, while the head is CNC’d aluminum.. Those additions show where the maker draws the line: printed plastic carries bulk geometry and systems routing. while metal provides the surfaces and thermal stability needed for combustion-related wear.
From a reader’s perspective, the most interesting part isn’t the “how much is printed” brag.. It’s the engineering discipline behind making an engine run at all.. A carburetor is also sourced as an off-the-shelf component. which is an implicit admission of reality: some parts benefit from production-grade machining and tuning rather than experimentation.. The builder’s “third generation” approach also signals the real lesson of the workshop—each attempt is effectively a debugging cycle for materials. sealing. alignment. and fluid management.
There’s also a broader trend underneath this build.. Makers have used 3D printing to experiment with steam engines. Stirling engines. and electric motors. and the common theme is not that printing replaces all other manufacturing.. Instead, it accelerates iteration, letting people redesign housings, linkages, ducting, and custom mounts faster than traditional fabrication.. In other words, 3D printing becomes the prototyping engine for the machine itself.
Why it matters now is that desktop fabrication is moving from “cool prototypes” toward functional devices that test real-world constraints.. When plastic parts survive long enough to run an internal combustion engine—however briefly or under controlled conditions—it expands what creators might attempt next: custom pump bodies. cooling manifolds. protective housings. and other components where printed geometry gives immediate value.
The caution is equally important.. A plastic engine that runs once doesn’t automatically translate into durability, safety, or repeatability.. Combustion systems are unforgiving. and FDM print quality—layer adhesion. orientation. and dimensional accuracy—can make the difference between a stable build and a failure that shows up only after heat cycles.. Still, each successful run pushes the practical boundary of consumer-grade manufacturing and makes the next iteration more informed.
In a workshop sense. the “dancing bear” idea lands: the spectacle is that it runs. but the real achievement is the feedback loop.. Misryoum sees this kind of iteration as a sign of how makers will increasingly treat 3D printers—not as novelty tools. but as modular manufacturing platforms for mechanical experimentation. where metal and off-the-shelf components plug the gaps and printed parts provide speed.
